Product details

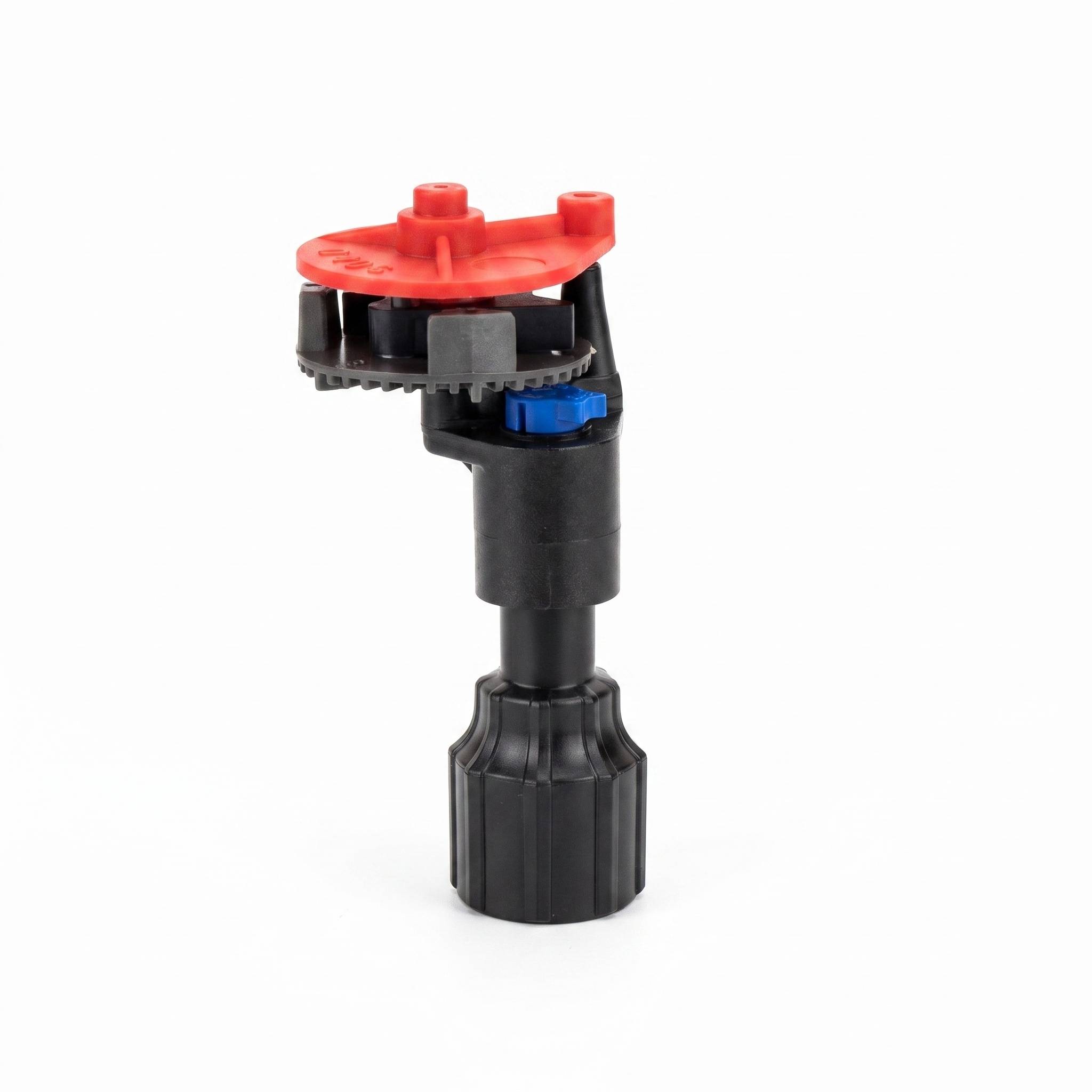

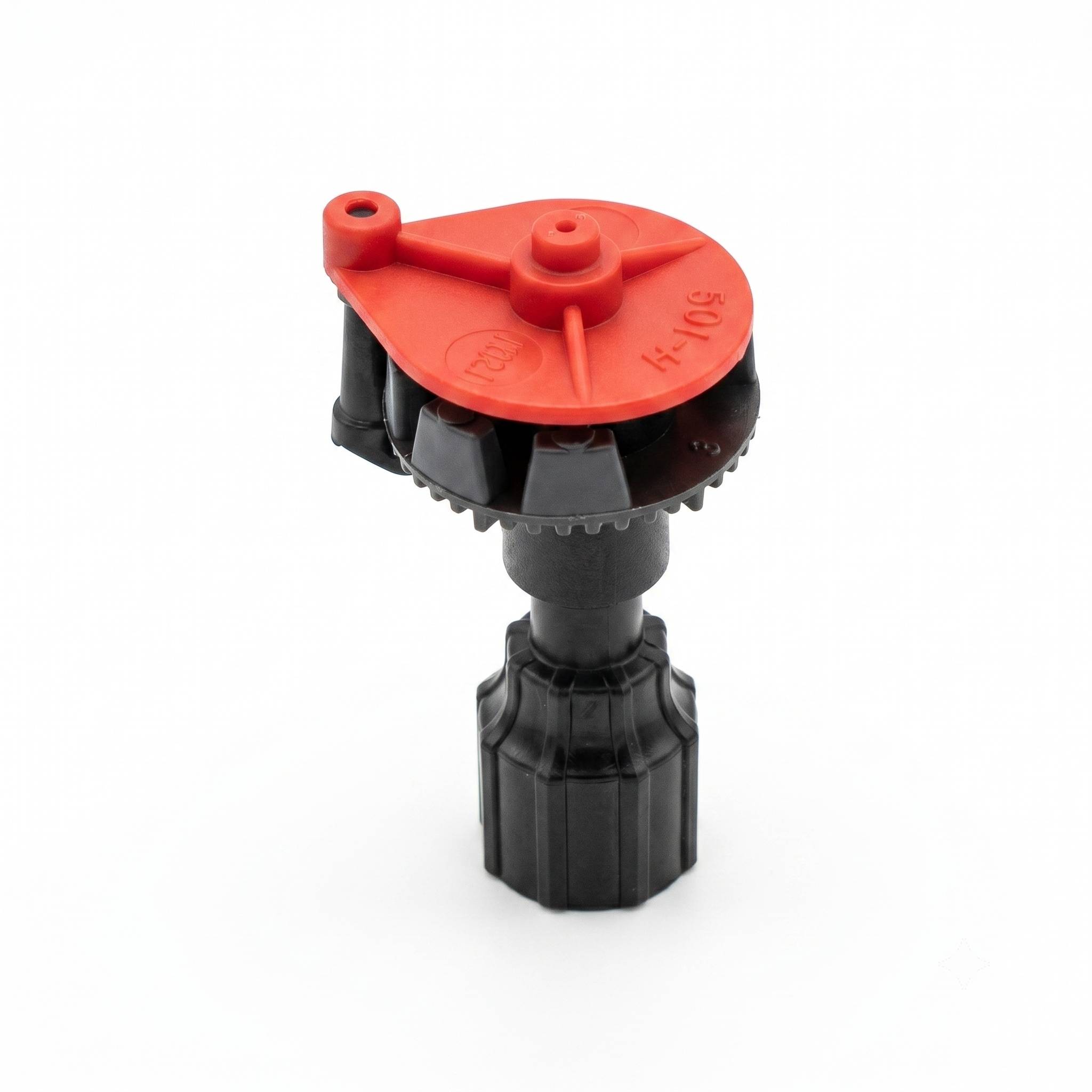

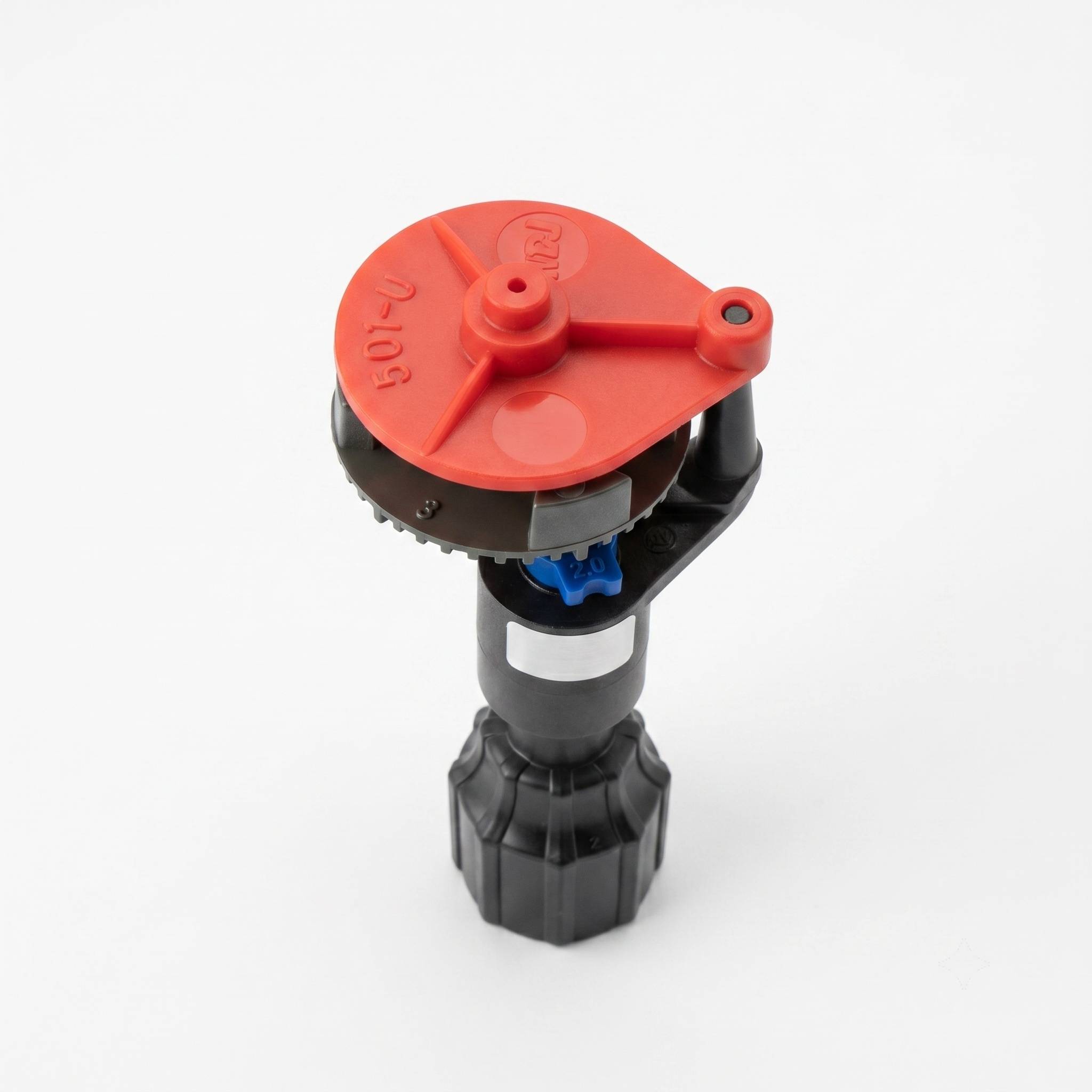

Low precipitation rate with turbo hammer operation. Has a 1/2″ BSPF.

KN5-200 Spacing (m): 4×4; 4×6; 6×6; (6×8; 8×8) – needs a higher pressure

Output @ 2.5 bar: 200l/h Pressure range: 1.5 – 3 bar Diameter: 14.5 – 15m

KN5-300 Spacing (m): 6×6; 6×8; 8×8; (8×10; 10×10)- needs a higher pressure

Output @ 2.5 bar: 300l/h Pressure range: 1.5 – 3 bar Diameter: 12 – 14m
