Product details

Single line polytunnel irrigation kits are designed to provide overhead irrigation to polytunnels in nurseries, market gardens and garden centres. On overhead spray line produces a fine and even mist spray over the entire area of the polytunnel, watering everything inside the tunnel with a gentle rain-like spray.

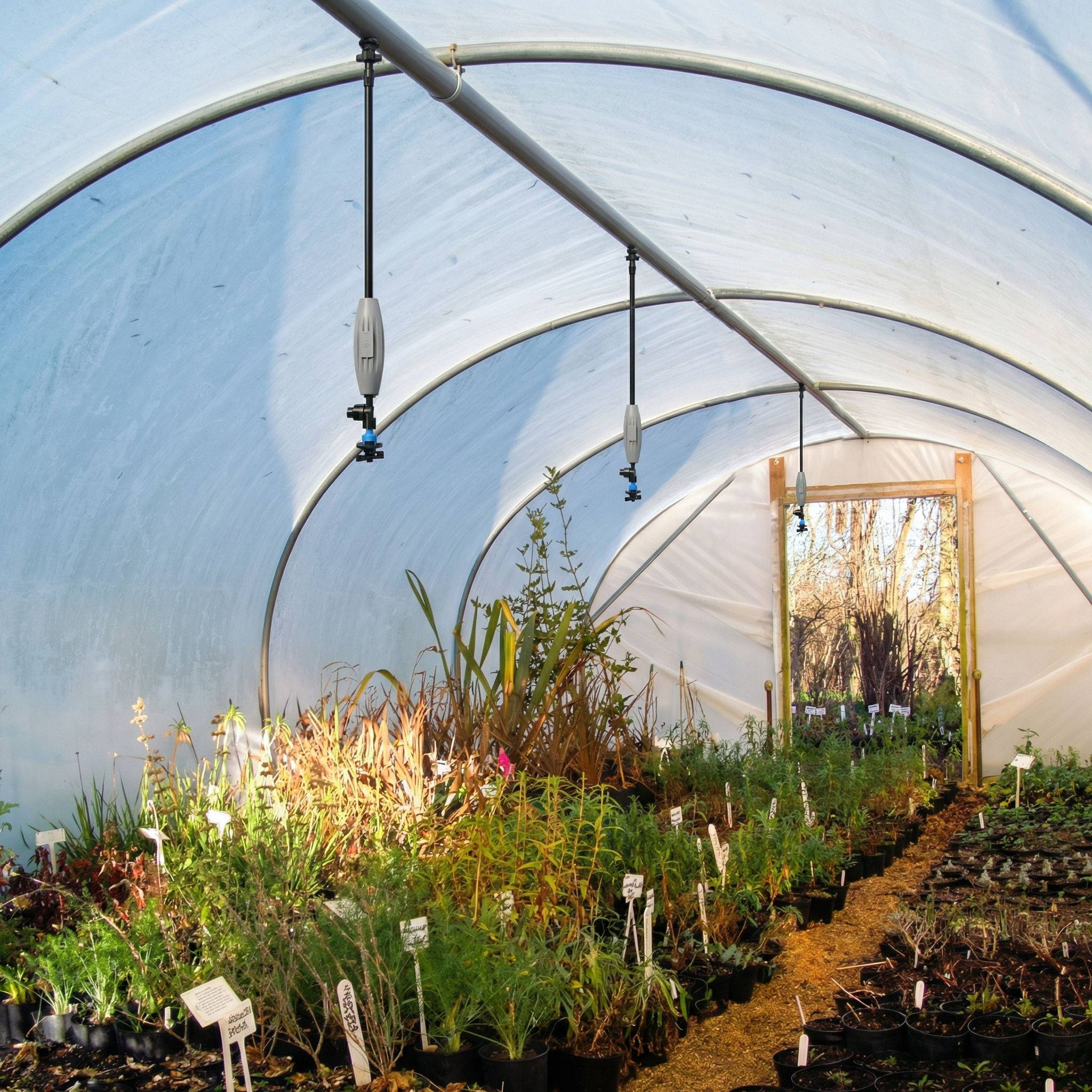

Single line irrigation systems use a spray line strapped to the centre ridge line of the polythene tunnel.  The pipe is pre-drilled to accept sprinklers, with flexible down tubes bringing the spray nozzles to a lower position to reduce ‘bounce back’ of spray off the tunnel sides. A small weight keeps the sprinkler in the vertical position, this can easily be brushed out of the way if it is at head height.

At the base of the downtube a drip-stop valve, which shuts when the watering finishes, ensuring the watering lines are kept full of water for instant start-up. The highly uniform sprinkler nozzles use much, much less water than the old Dutch-pin nozzles and provide watering levels similar to natural rainfall. Computer design ensures high coefficients of uniformity throughout the tunnel.

Single line polytunnel watering systems can be automated if required, allowing the irrigation to be done early in the morning when evaporation rates are low and staff have not yet arrived on site.

Single Line Polytunnel Irrigation Kit contents
Each kit is supplied with 2m lengths of pre-drilled uPVC pipe, sockets, Access mini-spin nozzles, drip-stop valves, downtubes, entry filter and ‘geka’ hose fitting.
Supplied with the following fixings: Suspension straps to fit to ridge bar.

THESE 3M OR 4M WIDE TUNNEL WATERING KITS ARE AVAILABLE IN A RANGE OF SPRAY LINE LENGTHS BETWEEN 10M – 30M
