Product details
Lowara vertical pumps are designed for higher flows and pressures and are available in single and three phase versions. Xylem’s Lowara brand is leading in providing long term economical solutions for pumping and circulating clean or contaminated water.

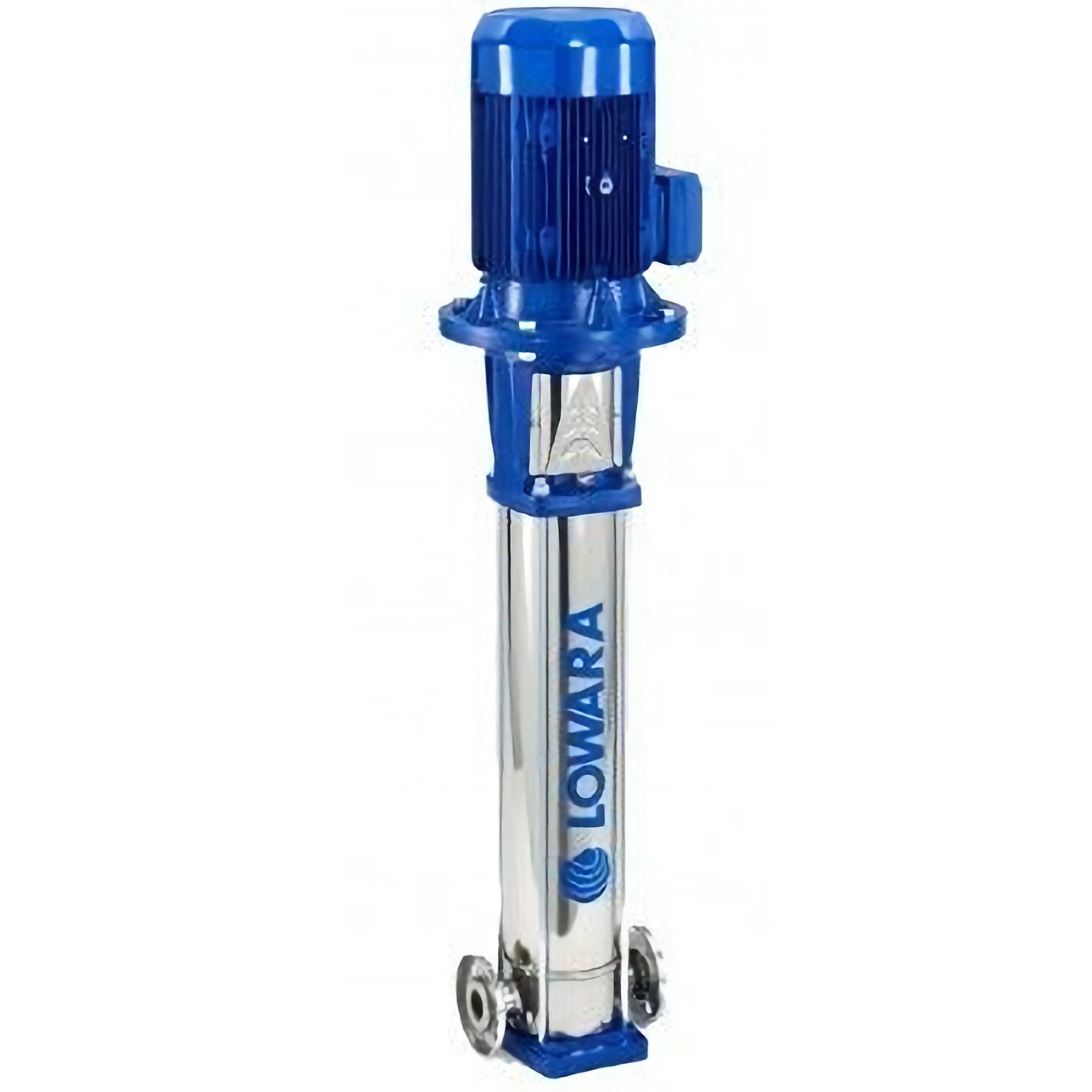

Lowara vertical pumps e-SV are a non-self priming vertical multistage pumps coupled to a standard motor. The liquid end, located between the upper cover and the pump casing, is held in place by tie rods. The pump casing is available with different configurations and connection types.
APPLICATIONS
• Handling of water, free of suspended solids, in the civil, industrial and agricultural sectors.
• Pressure boosting and water supply systems.
• Irrigation systems.
• Wash systems.
CHARACTERISTICS
• Vertical multistage centrifugal pump. All metal parts in contact with the pumped liquid are made of stainless steel.
• Seal housing chamber designed to prevent the accumulation of air in the critical area next to the mechanical seal.
• Easy maintenance. No special tools required for assembly or disassembly.
• BSPF inlet and outlet ports.
Models available:
10SV04 1.5″ BSPF inlet & outlet 1.5 kW – 8.58 amps F.L.C. Flow m3/hr: 11.9 @ 30m – 8.0 @ 40m
10SV05 1.5″ BSPF inlet & outlet 2.2 kW – 11.6 amps F.L.C. Flow m3/hr: 14.5 @ 30m – 11.6 @ 40m – 8.0 @ 50m
10SV06 1.5″ BSPF inlet & outlet 2.2 kW – 11.6 amps F.L.C. Flow m3/hr: 15.6 @ 30m – 13.3 @ 40m – 11.0 @ 50m – 8.0 @ 60m – 6.0 @ 65m
10SV06 1.5″ BSPF inlet & outlet 3PH 2.2 kW – 4.64 amps F.L.C. Flow m3/hr: 15.6 @ 30m – 13.3 @ 40m – 11.0 @ 50m – 8.0 @ 60m – 6.0 @ 65m
10SV07 1.5″ BSPF inlet & outlet 3PH 3.0 kW – 6.19 amps F.L.C. Flow m3/hr: — @ 30m – 14.0 @ 40m – 12.3 @ 50m – 10.5 @ 60m – 9.7 @ 65m – 8.0 @ 70m – 6.1 @ 75m
Lowara Vertical Pumps
Lowara vertical pumps
From: £2,614.00 (excl VAT)
From: £3,136.80 (inc VAT)
