Product details

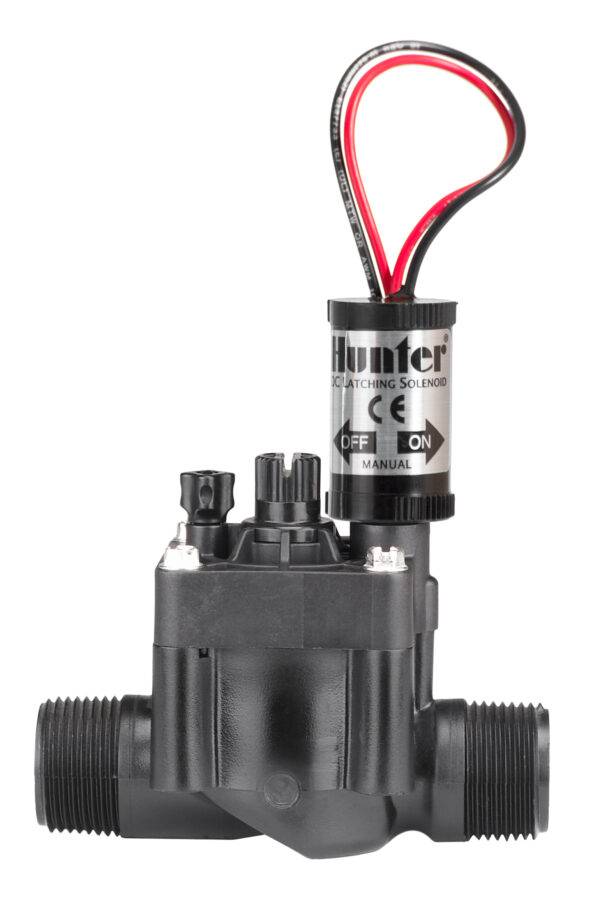

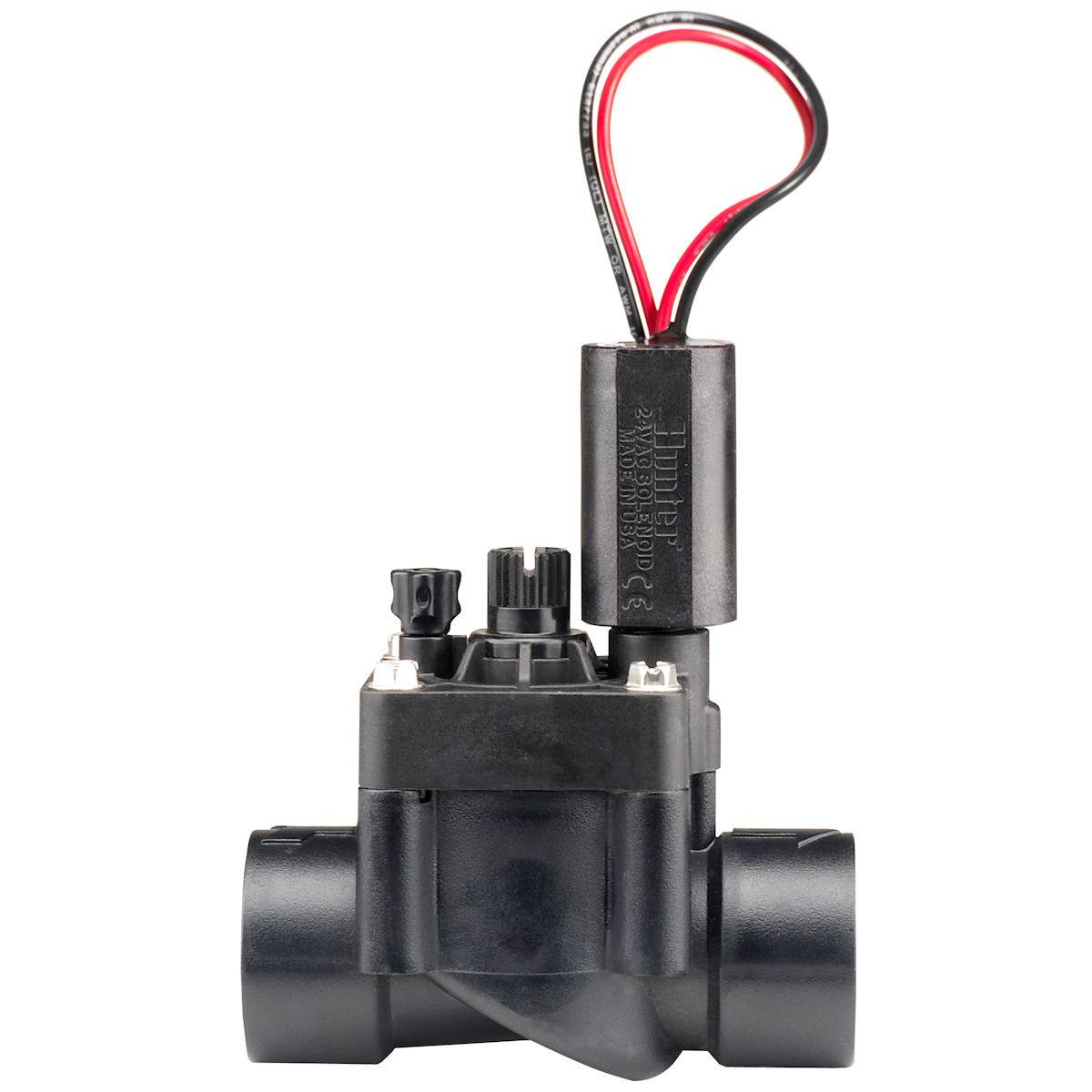

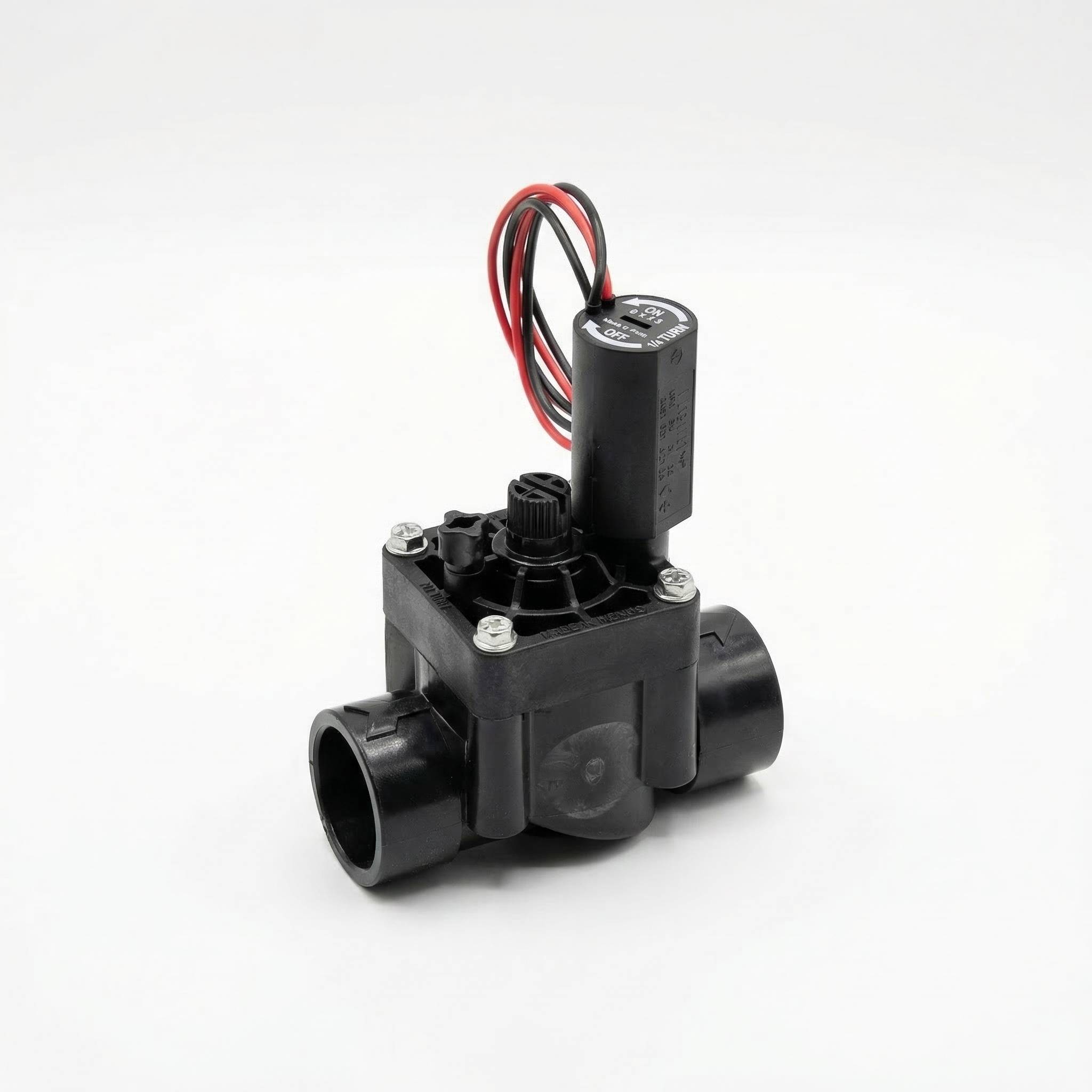

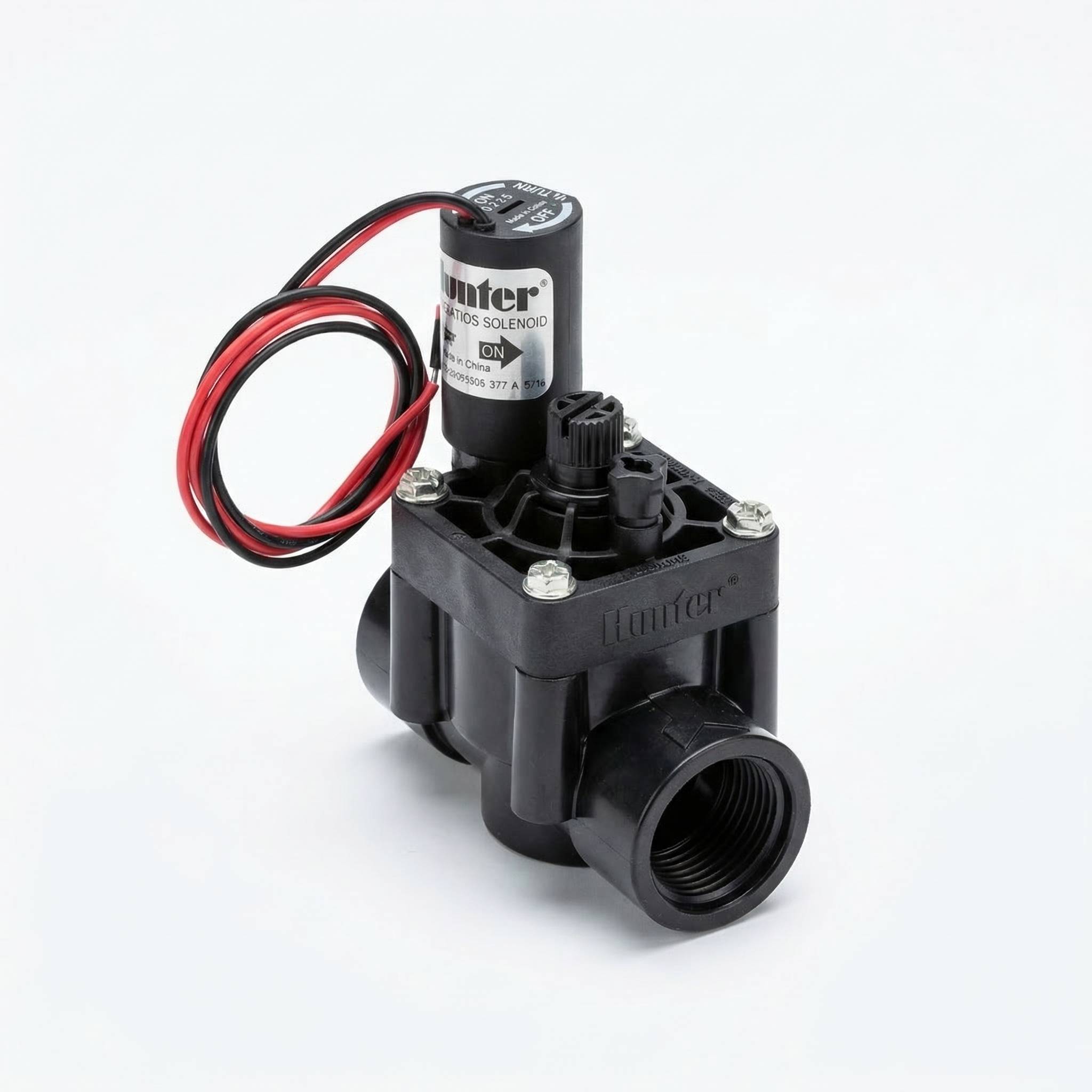

The Hunter 9v solenoid valve is suitable for battery operated controllers that require a 9v latching solenoid. Latching valves use very little power, making them ideal for irrigation timers and controllers where there is no access to mains power.

The Hunter PGV valve is manufactured by Hunter Industries, one of the world’s largest irrigation companies and renowned for quality and innovation.

This hard working, heavy-duty valve offers the best features of Hunter’s top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 25 mm body configurations: angle, globe, or male x male design. In turn, each model is available in either a flow control or non-flow control version. For larger landscape applications, the PGV comes in both 40 mm and 50 mm globe/angle models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.

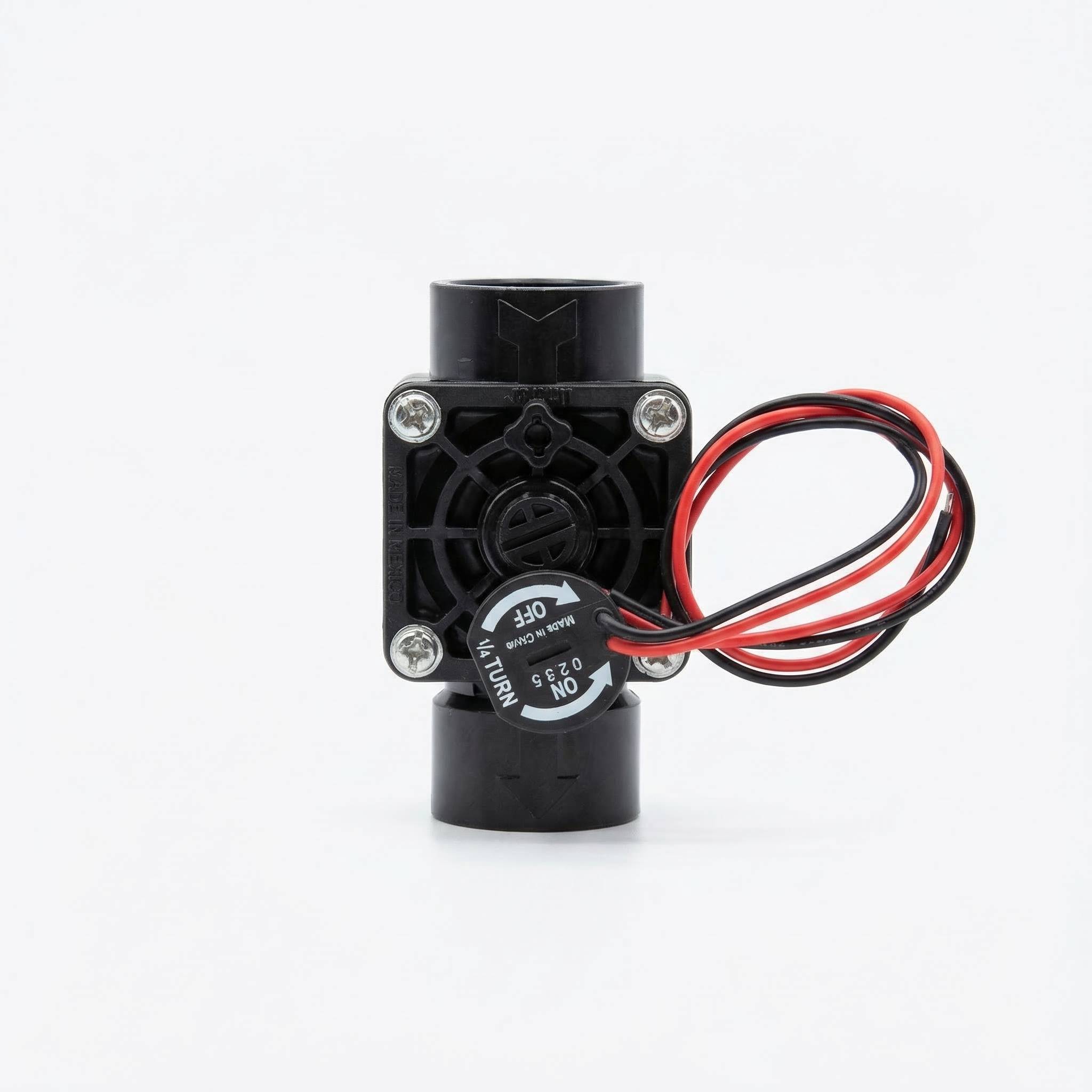

External/internal manual bleed allows for quick and easy activation at the valve
Double-beaded diaphragm seal design ensures leak-free performance
Captive bonnet screws eliminate the possibility of lost parts during disassembly
Flow control maximises efficiency and prolongs the life of the system
Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
Each valve available with globe or angle configuration for convenient placement

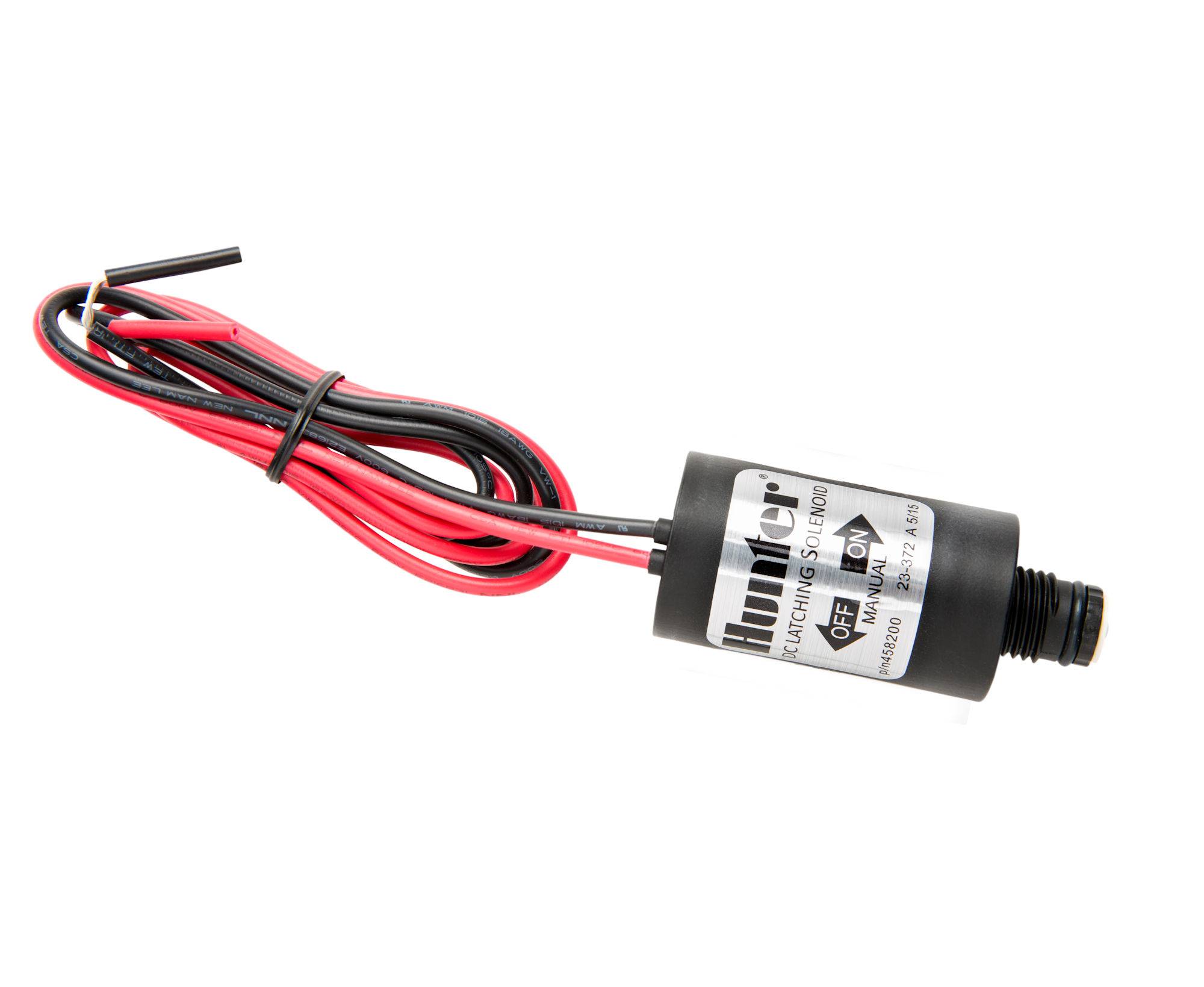

Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service

Hunter 9v solenoid valve technical specifications:

• Flow: 5 l/h – 9,000 l/h
• Pressure range: 1.5 – 1- bar
• 80cm electrical leads
• 1″ BSPF inlet and outlet thread.

Use grease filled crimps to secure to the controller fly leads as a good electrical connection is required. Note: 9v valves have one red and one black wire
